Products Irrigation & Drainage

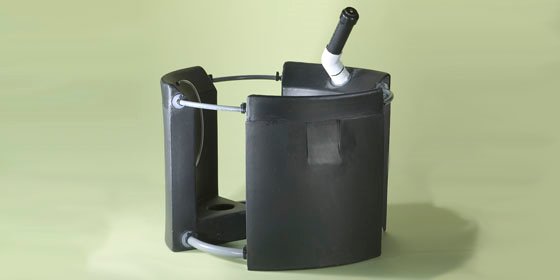

Modular Container Irrigation System, CWM Round

A versatile self-watering system designed for use in any large planter. Reservoir modules are linked together and buried within the pot. A hand-filled reservoir uses a vacuum-sensor to monitor soil moisture, giving exactly the amount of water needed for plants.

Select Model

Pick Model Number
Number of Modules
Add To Quote Request
Ships in 2 weeks • Questions? Talk to us

Tournesol products are made to order for commercial application. Exact lead times are provided once your order is received.

At checkout, choose your delivery method:

Commercial Curbside Delivery with Liftgate: driver unloads and places your item(s) curbside. No forklift needed.

Commercial Curbside Delivery: a forklift must be available on site to receive the delivery.

Orders over $40,000 or with mixed product types are quoted separately after checkout.

We offer scheduled delivery to commercial and residential addresses. Deliveries do not include unpacking or removal of packing materials.

All sales are final; no returns. For damaged shipments, warranty claims, or a product received in error, contact us at 800.542.2282.

View full warranty terms

PART
NUMBER		 WATER
CAPACITY		 CONTAINER
SIZE/RANGE		 CONTAINER
HEIGHT
CWM-1109-MS .8 gal 15"-20" Up to 24"H
CWM-1109-2k 1.6 gal 20"-24" Up to 24"H
CWM-1109-3k 2.4 gal 22"-26" Up to 24"H
CWM-1109-4k 3.2 gal 26"-30" Up to 24"H
CWM-1114-MS 1.2 gal 15"-20" Up to 24"H
CWM-1114-2k 2.4 gal 20"-24" Up to 24"H
CWM-1114-3k 3.6 gal 22"-26" Up to 24"H
CWM-1114-4k 4.8 gal 26"-30" Up to 24"H
CWM-1120-MS 1.8 gal 15"-20" 24"H and over
CWM-1120-2k 3.6 gal 20"-24" 24"H and over
CWM-1120-3k 5.4 gal 22"-26" 24"H and over
CWM-1120-4k 7.2 gal 26"-30" 24"H and over
CWM-1714-MS 3.0 gal 21"-26" Up to 24"H
CWM-1714-2k 6 gal 27"- 30" Up to 24"H
CWM-1714-3k 9 gal 30"-36" Up to 24"H
CWM-1714-4k 12 gal 36"-42" Up to 24"H
CWM-1714-5k 18 gal 42"-48" Up to 24"H
CWM-1720-MS 4.25 gal 21"-26" 24"H and over
CWM-1720-2k 8.5 gal 27"-30" 24"H and over
CWM-1720-3k 12.7 gal 30"-36" 24"H and over
CWM-1720-4k 17 gal 36"-42" 24"H and over
CWM-1720-5k 21.2 gal 42"-48" 24"H and over
CWM-2920-MS 9.5 gal 34"-45" 24"H and over
CWM-2920-2k 19.5 gal 45"-48" 24"H and over
CWM-2920-3k 29.25 gal 48"-54" 24"H and over
CWM-2920-4k 39 gal 54"-64" 24"H and over
CWM-2920-5k 48.75 gal 64"-76" 24"H and over
CWM-2920-5kE 50.75 gal Over 76" 24"H and over

Product Features

Both round-back and square-back modules for cylindrical, square, and rectangular pots

Keeps plants healthy, strong and stress free by balancing moisture and oxygen in the soil

Extended maintenance intervals

Virtually invisible, disappears under the soil when installed
